22-PIN (Conductor) 20 amps 14-16 GA, Bulkhead Kit Series, Sealer Terminals, Housing Male & Female Quick Disconnect Kit
Product details
| Management number | 215630617 | Release Date | 2026/04/12 | List Price | $15.20 | Model Number | 215630617 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Weather Pack, also known as Weatherpack, are popular wire connectors commonly used in automotive applications as they seal against moisture, dust and dirt. Weather Pack Connectors can withstand exposure to extreme temperatures, moisture, harsh engine compartment fluids and chemicals, making them ideal for industrial, heavy equipment and marine applications. Terminals are designed to mate with appropriate cable seals. The female connector (tower connector) and the male connector (shroud connector) locks together with dual-lock tangs to secure terminals firmly into the connector housing, and ensure strong electrical conductivity. Weather Pack connectors are made of a self-lubricating silicone and are multi-ribbed to prevent moisture and other contaminants from entering the connector and causing terminal corrosion. The seal is placed on the wire and then the terminal is crimped to the seal. Weather-Pack Highlight -20 amps continuous maximum current rating -Connector Position Assurance (CPA) available -Dual-locking tangs on terminals -Low energy, low voltage capability -40°C to 125°C temperature range Packaging Content: Qty: 1 22 Way Male Housing Qty: 1 22 Way Female Housing Qty: 4 Secondary Lock Qty: 6 Cavity Plug (Cavity plugs seal unused female and male cavities) Qty: 22 14,16 GA Crimp Male Terminal (Strip Packaging ) Qty: 22 14,16 GA Crimp Female Terminal (Strip Packaging ) Qty: 44 14,16 GA Cable Seal Blue Qty: 1 Roll of 3M 3/4 All In & Out Door Tape Electrical Tape. Benefits Strip/Reel Contacts Strip/Reel Packaging Contacts have an easier time handling the terminals while they are attached to the strip. Whenever yours hand are steady or not then maybe this will make things easier for you.

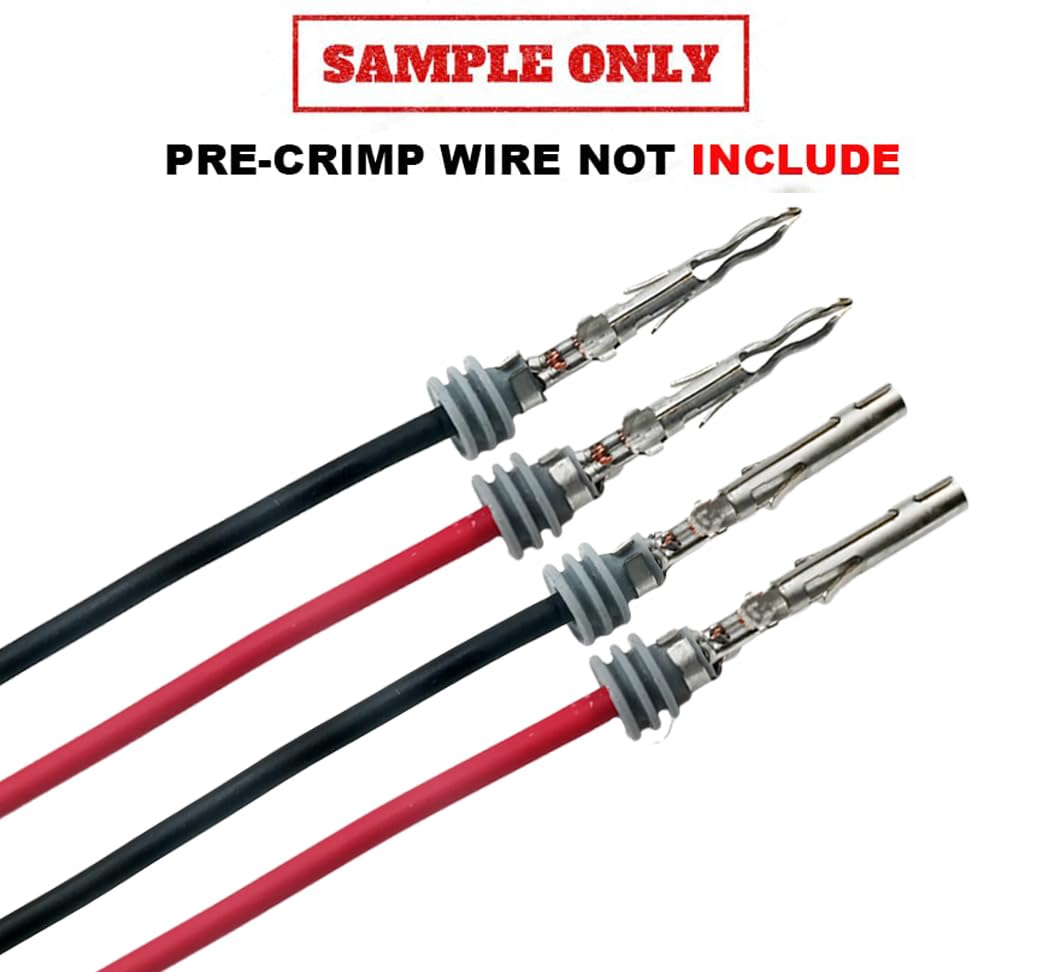

- Package List: 22 Pin Weather Pack X1 Tower Housing, X1 Shroud Housing Connector, X4 TPA, X44 Sealers, X22 male, X22 Female Terminals
- Gauge Wire: 14 16 AWG
- Compatible with WeatherPack Housing p/n 15492531,15492521, Sealer p/n 15324981, Terminal p/n 12124581,12124587
- Using OEM (connector, lock, seals, and terminals), Professional installation recommended
- Temperature Rating: -60F (-51C) to 257F (125C)
| Color | Black |
|---|---|
| Gauge | 14.0 |
| Model | E213 |
| Terminal | Pin Terminal |
| Brand Name | ELITE.CITI |
| Manufacturer | ELITE.CITI |
| Material Type | Alloy Steel, Brass, Nylon |
| Connector Type | Crimp |
| Maximum Voltage | 16 Volts |
| Contact Material | Copper |
| Specification Met | RoHS |
| Temperature Rating | 125 degree celsius |
| Included Components | Connector, Sealer, Terminal |
| Insulation Material Type | Silicone |
